Wankel Engine

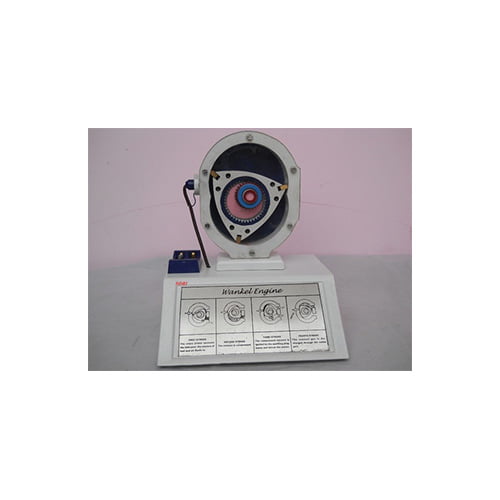

The model demonstrates the principle operation. It is cut way to show the internal constructional details.
The power piston is an arch like triangular rotar which on rotating generates an epitrechoid. Mounted on base.
