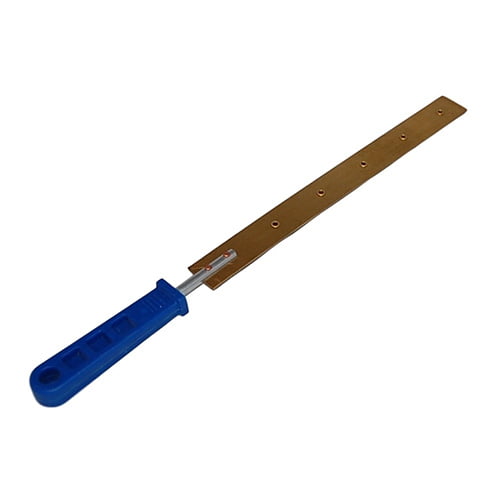

Compound Strip (Bar)
For demonstrating the differential expansion of two metals as shown by the curvature produced when the bar is heated.
Comprising a bar of copper and the bar of iron, riveted together.
