Condenser Aepinus
Comprising two metal discs, with variable separation, supported on insulating pillars & provided with insulating handles on the ends of the adjustment slide rods, 4 mm sockets too are drilled onto the ends of the rods.
A rectangular glass plate is supplied which mounts in clips between the two discs & may be easily replaced by a plate of some other material to show the effect of different dielectrics. The whole is mounted on a polished wooden base.
Magnetic Field Apparatus
Apparatus To Show Force On Conductor In Magnetic Field – Comprising a strong U-shaped magnet and a pair of brass rails with 4mm socket terminals. A brass axle with plastic discs is free to roll along the rails and completes the electrical contact between them. When the axle is placed on the rails between the poles of the magnet, and a power supply unit is connected, the axle rolls along the rails, away from the centre of the magnetic field. Apparatus To Show Force On Conductor In Magnetic Field for Magnetism Experiment in Physics Lab.
Worchester Electromagnetic Kit
This kit is most versatile as it enable students to perform a wide range of experiments in electromagnetism such as construction of working motors and meters. It comprises eight anisotropic alloy magnets, eight anisotropic ceramic ferrite magnets, four steel magnet yokes, six plotting compasses, four hard board formers for compasses, one bottle iron fillings, four iron filling dispensers, four each double C-cores, clips for C-cores, aluminium rings, split aluminium rings, four each support bases, armature with axle tubes, aluminium axle rods, eight split pins, 16 rivets, one length latex rubber tubing, four each formers for coils, reels cellulose tape, reels copper wire, four each sheets white pasteboard, plain postcard, reels white cotton, four each C-resistors 100 ohm, 10 ohm, ten flash lamp bulbs, four neon bulbs, eight (MES) bulb holders, wood clamp, wood block.
Demountable Transformer
Demountable Transformer for Physics Lab Comprises U & I cores of low loss magnetic material, to form a closed core of cross section 25 mm in plane of laminations, 32 mm perpendicular to them is an I – core of length 102 mm. U core external height 102mm. Internal height to take bobbin length 77 mm. Pair of pole pieces, each 65x30x25 mm with on end shaped to part of a cone for maximum flux density. Hole drilled through total length along cone axis to take a light beam. Pole pieces will accept supertrods & shading ring (provided with accessories) & may be clamped on any separation on U core, or in contact as a non laminated I – core. Cast aluminium alloy stand consisting of a heavy base on four rubber feet with removable clamping arms. Maximum dimensions of base 190x200x115 mm. Channel 35 mm wide & 3 mm deep to take transformer core, extends across full width. Integral support for arms, to rear, is below the level of the pole pieces. Arms pivot on steel spindle with adjustment of knobs to rear bringing hard rubber pads at front end of arms to bear on transformer core. Synthetic hammer finish except of clean metal in channel & 4 mm hole to take on earthing plug lead. Complete with all the accessories
Shop
Showing 553–566 of 566 results
- Physics Sound & Waves Lab

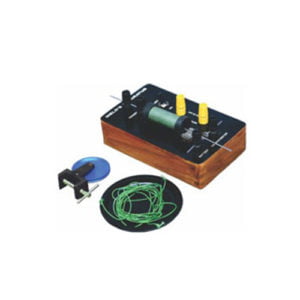

Vibrator Electrical (Melde’s Apparatus)
This apparatus is an improvement over the conventional apparatus to show the effects of vibrations in a stretched cord and examine the relationship between frequency, tension and density. A thin steel rod is clamped near one end through two 4 mm socket terminals. This rod passes through the centre of a small solenoid and between the poles of a magnet. Adjustable contact points fitted through a second pair of 4 mm socket terminals make alternating connection with an adjustable contact on the rod. The rod has a small hole at one end for the attachment of thread which passes over a pulley mounted on a bench clamp and supports a scale pan, 75 mm diameter, supplied complete with pulley with clamp and scale pan, 2V A.C. power supply.
SKU: n/a - Chemistry Lab
WATER BATH (6-Place)
6-Place, Stainless steel, size 360 x 260 x 135 mm. high, 110 mm. internal depth with integral constant level device and 750W heater with overheat protection device. Removable cover has six 85 mm. diameter holes each fitted with a set of stainless steel rings..
With connector and 3-core cable.
For 220-240 V AC.SKU: n/a - Physics Sound & Waves Lab

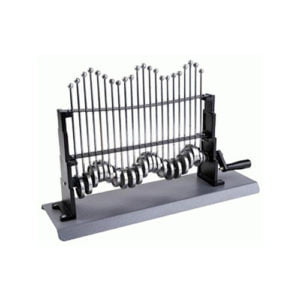

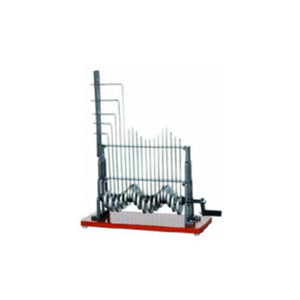

Wave Motion Apparatus
For demonstrating longitudinal and transverse motion, consisting of a number of eccentric discs supporting a series of metal rods on revolving the handle, transverse waves are obtained. Longitudinal waves are obtained with bent rods running in metal guide on metal base.
SKU: n/a - Electrostatic Physics Labware

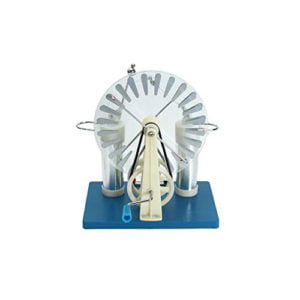

Wimshurst Machine
Wimshurst Machine – The two plates are supported in two rigid uprights and driven by belt in opposite direction. They are heavy, high resistance plastic with sectors of aluminium sheet. Two leyden jars (condensers) made form corning glass and aluminium foil. The whole is mounted on a wooden base nicely polished.
SKU: n/a - Electricity & Cell Lab

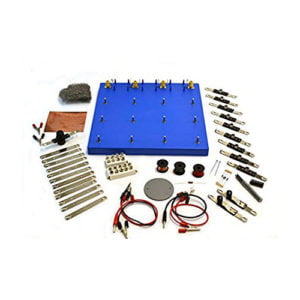

Worcester Circuit Board Kit
Consists of a base board, complete with terminals, a set of metal connection pillars & a number of clips on flexible connection strips & accessory units; enabling a wide variety of electrical circuits to be constructed quickly & easily. The phosphor – bronze strips are so designed that when flexed a little in the fingers, they are easily slipped over the pass where their natural spring holds them firmly in position & ensures a good electrical contact. Supplied with all the necessary accessories.
SKU: n/a - Magnetism Physics Labware
Worchester Electromagnetic Kit
This kit is most versatile as it enable students to perform a wide range of experiments in electromagnetism such as construction of working motors and meters. It comprises eight anisotropic alloy magnets, eight anisotropic ceramic ferrite magnets, four steel magnet yokes, six plotting compasses, four hard board formers for compasses, one bottle iron fillings, four iron filling dispensers, four each double C-cores, clips for C-cores, aluminium rings, split aluminium rings, four each support bases, armature with axle tubes, aluminium axle rods, eight split pins, 16 rivets, one length latex rubber tubing, four each formers for coils, reels cellulose tape, reels copper wire, four each sheets white pasteboard, plain postcard, reels white cotton, four each C-resistors 100 ohm, 10 ohm, ten flash lamp bulbs, four neon bulbs, eight (MES) bulb holders, wood clamp, wood block.
SKU: n/a
