Physics Sound & Waves Lab

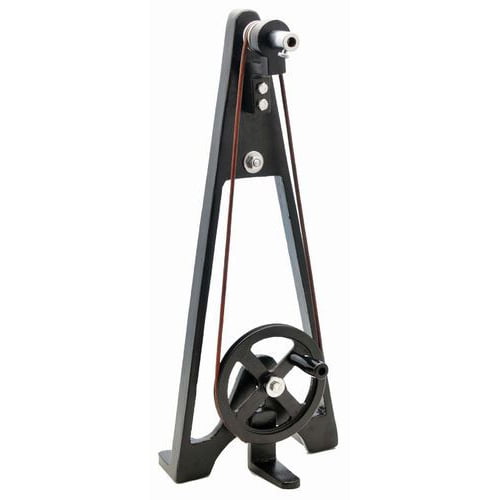

Whirling Table
Stand overall height 43 cm. for use in vertical or horizontal position, fitted with hand wheel and wire helix belt drive to pulley. Suitable for use with Savart’s wheel and disc and adopter to accommodate color discs.
Related products
- Physics Sound & Waves Lab
Kundts Tube Apparatus
To determine the standing longitudinal waves in column of air and velocity of sound in air, it comprises of a glass tube approx 1.2 meter length and 34 mm diameter. There is a tightly fitting but adjustable piston on a 390 mm long rod at one end of the glass tube. A loose fitting piston attached to a 1.2 meter long sounding rod at the other end of the glass tube, fitted on a wooden base.
SKU: n/a - Physics Sound & Waves Lab
Tuning Fork Electrical
Mounted on sturdy streamlined base with provision for horizontal or vertical use, fork is manufactured from selected steel. Prong is 10 x 25 x 300 mm. accurate frequency adjustment, vibrations rate 60 per second. Electromagnet can work on 6 Volts. The amplitude of vibration can vary by sliding the electromagnet inside the prongs.
SKU: n/a - Physics Sound & Waves Lab
Ripple Tank
The apparatus consists of a wooden framed tray with a plate glass base and detachable legs, overall size of tray 600x 520x 56mm deep.
A pair of support rods with integral ‘G’ clamps is provided which can be attached to the sides of the tank and used to carry the wave generating system. A set of 4 metal barriers (reflectors) is included consisting of a pair of straight barriers 150 x 25mm, a curved barrier of 215 mm. chord length x 25mm high and a short, straight barrier 25 x 25mm, to minimize unwanted reflections from the sides of the tank a set of four loose gauze strips are provided which, when is use, are arranged around the edges to from a ‘beach’ on all sides.
SKU: n/a
