Mechanics Physics Labware

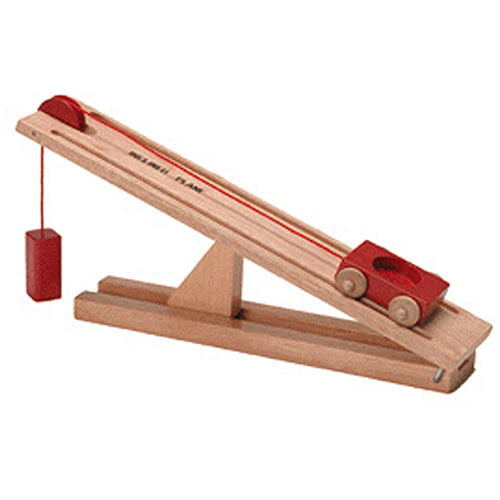

Inclined Plane Simple
Simple, hardwood comprising, cut-away base to allow cord to hang freely and hinged plane 60 x 7.5 cm. with aluminium pulley 28 mm. diameter, and stepped lower face to accommodate wood block for setting at angles between 24 and 45 deg. Approximately with cylindrical metal roller and scale pan.
Related products
- Mechanics Physics Labware
Free Fall Apparatus
This apparatus is used to determine G by measuring the time of fall of a steel ball through a pre- determined distance..
The time taken being less than one second, a centi second/ milli second timer capable of measuring the time in fraction of seconds has to be used.
Comprises two units each of which is mounted on a plastic which can be clamped on a 12 mm diameter retort rod. Connections are taken out to 4 mm sockets. The solenoid unit has a metal core which facilitates prompt release of the sphere on de-energizing.
The gate switch comprises a hinged steel plate to hold against an adjustable contact by means of a small permanent magnet, the plate falls away promptly at the impact of falling steel ball. The apparatus is supplied with a solenoid unit, gate switch, Steel Ball 18 mm dia and a stand.
SKU: n/a - Mechanics Physics Labware
Flectchers Trolley
Comprises a lightweight aluminum track with leveling screws and cushioned stops at either end, pulley fixed towards one end, clamp for vibrator and automatic pen release.
A metal trolley with ball bearing mounted wheels to minimize friction, has five holes for accommodating cylindrical masses, including is a vibrator and pen holder with one each wooden blocks, to demonstrate the experiments on acceleration.SKU: n/a - Mechanics Physics Labware
Force Table
To verify the law of composition and resolution of forces.
This consists of machined aluminium table 40 cm. in diameter. Its raised rim has a scale, graduated in 360 degree, mounted on vertical support rod based provided with levelling screws. Body under study is a ring in center of the table fastened by cords passing over four pulleys, attached with the table.
Complete with four pulleys, four weight hangers, twelve weights 2 x 10 gm. 2 x 20 gm. 4 x 50 gm. 4 x 100 gm.
SKU: n/a
