Mechanics Physics Labware

Made of Hardwood, 16 pieces, models of various shapes and figures in box.

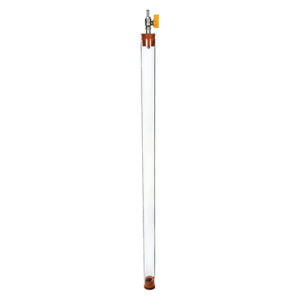

This apparatus demonstrates that bodies of different density or mass fall through a given distance in the same time in the absence of atmospheric drag

a) Glass tube 600 x 20 mm, fitted with two solid rubber bungs, one carrying 8 mm dia rubber tube with clip for vacuum connection.
b) Same but Glass tube 600 x 50mm dia
c) Same as (a) but with stopcock and can be fitted directly on pump plate

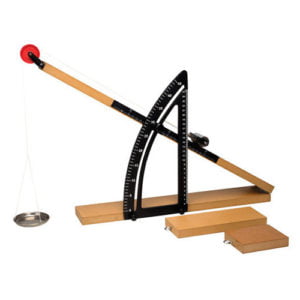

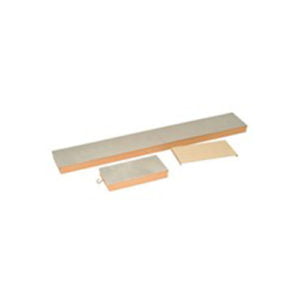

For investigating sliding friction. Consists of a plane board hinged at the base at one end with a pulley for the force cord at the other end. A moveable block enables the inclination of the plane to be varied. Complete with 100 x 65mm. Reversible friction slider and 70 x 25mm. Metal roller. Board dimensions: 600 x 75mm., Fitted with graduated arc.

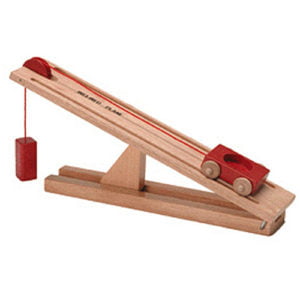

Simple, hardwood comprising, cut-away base to allow cord to hang freely and hinged plane 60 x 7.5 cm. with aluminium pulley 28 mm. diameter, and stepped lower face to accommodate wood block for setting at angles between 24 and 45 deg. Approximately with cylindrical metal roller and scale pan.

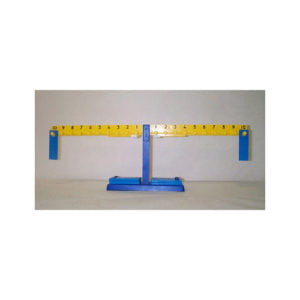

This kit helps students understand the concept of moments and principle of lever..

It comprises of 5 plywood beams 600 x 45 x 3 mm graduated at 38 mm intervals, and with a groove across its centre to locate the fulcurm point. Also supplied with four fulcurms 32x32x64mm and 40 metal blanks 25mm square.

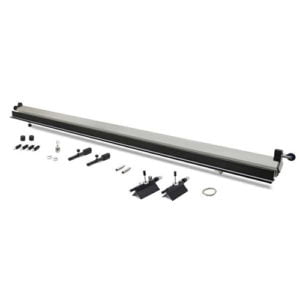

The Linear Air Track is designed for the study of linear motion under practically frictionless conditions.
.

It is used in experiments and demonstrations of topics such as: Newton’s Law, kinetic and potential energy, collisions, oscillatory motion, velocity, acceleration, conservation of momentum, motion on an inclined plane, conservation of mechanical energy, simple harmonic motion.

It is constructed from an extruded aluminium-alloy section, 2.25m long with equally spaced air holes. Two adjustable feet facilitate simple levelling. Two rows of fine holes provided on each side all along the length of the track through which jets of the air emanate to form air cushion on which the vehicles float under virtually frictionless conditions.

Linear Air Track is supplied complete with following accessories:
2 large vehicles (mass 400g, length 215mm)
1 small vehicle (mass 200g, length 100mm)
2 magnetic buffers (25mm diameter)
2 Plasticine holders (20mm diameter) with central hole
4 catapults (45mm wide) with slot for elastic band
3 steel buffers with central hole
4 elastic cords (220mm long) with plastic rings
1 reel of nylon thread
2 white plastic rods (4mm diameter 150mm long) for stroboscope photography
24 needles for use with steel buffer
20 white plain cards for interrupting light beams
1 reel rubber stand
1 pack of Plasticine
20 elastic bands

Air Blower is designed specifically to be used with the Air Track, Supplied complete with hose, adaptor and mains lead. Operates on 220-240V AC mains, 50/60Hz.

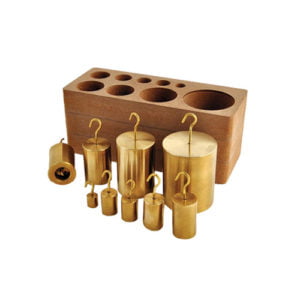

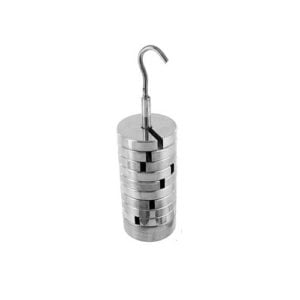

Series of masses 1 x 1Kg; 1x500gm; 1 x 200 g; 1 x 100 g; 1 x 50 g; 2 x 20 g; 1 x 10 g; 1 x 5 g, 2 x 2 g; 1 x 1 g, also available without hook.

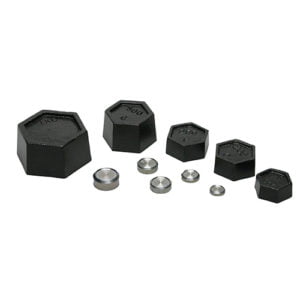

Hexagonal with or without lifting ring
(a) 50 g (b) 100 g (c) 200 g (d) 500 g (e) 1kg (f) 2 kg (g) 5kg

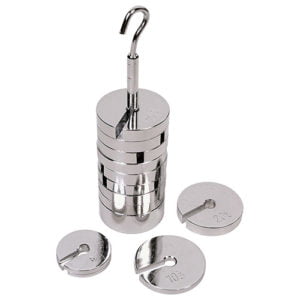

Made of iron, having large hole in center with slot, designed to be used with hangers
Size: 100 g, 50 g, 20 g, 10 g.

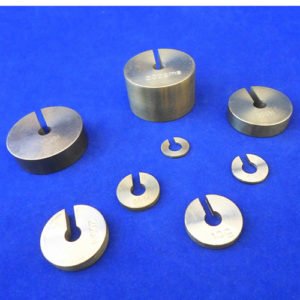

Made of steel, chrome plated, having large hole in center with slot, designed to be used with hangers
Size: 100g, 50g, 20g, 10g.

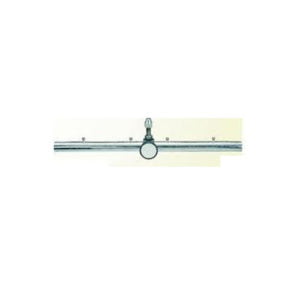

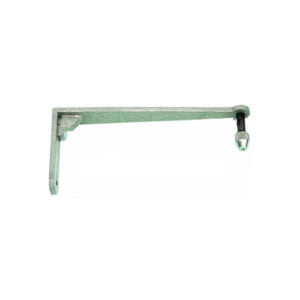

L shape bracket to fix Maxwell’s Vibration Needle on wall

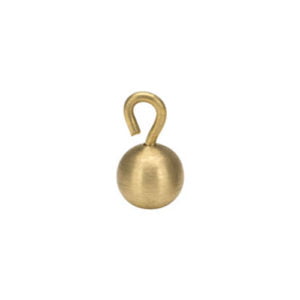

Brass spheres with hook for suspension
Dia (a) 13 mm (b) 19 mm (c) 25 mm.
