Recommended Products
Condenser Aepinus
Comprising two metal discs, with variable separation, supported on insulating pillars & provided with insulating handles on the ends of the adjustment slide rods, 4 mm sockets too are drilled onto the ends of the rods.
A rectangular glass plate is supplied which mounts in clips between the two discs & may be easily replaced by a plate of some other material to show the effect of different dielectrics. The whole is mounted on a polished wooden base.
Magnetic Field Apparatus
Apparatus To Show Force On Conductor In Magnetic Field – Comprising a strong U-shaped magnet and a pair of brass rails with 4mm socket terminals. A brass axle with plastic discs is free to roll along the rails and completes the electrical contact between them. When the axle is placed on the rails between the poles of the magnet, and a power supply unit is connected, the axle rolls along the rails, away from the centre of the magnetic field. Apparatus To Show Force On Conductor In Magnetic Field for Magnetism Experiment in Physics Lab.
Worchester Electromagnetic Kit
This kit is most versatile as it enable students to perform a wide range of experiments in electromagnetism such as construction of working motors and meters. It comprises eight anisotropic alloy magnets, eight anisotropic ceramic ferrite magnets, four steel magnet yokes, six plotting compasses, four hard board formers for compasses, one bottle iron fillings, four iron filling dispensers, four each double C-cores, clips for C-cores, aluminium rings, split aluminium rings, four each support bases, armature with axle tubes, aluminium axle rods, eight split pins, 16 rivets, one length latex rubber tubing, four each formers for coils, reels cellulose tape, reels copper wire, four each sheets white pasteboard, plain postcard, reels white cotton, four each C-resistors 100 ohm, 10 ohm, ten flash lamp bulbs, four neon bulbs, eight (MES) bulb holders, wood clamp, wood block.
Demountable Transformer
Demountable Transformer for Physics Lab Comprises U & I cores of low loss magnetic material, to form a closed core of cross section 25 mm in plane of laminations, 32 mm perpendicular to them is an I – core of length 102 mm. U core external height 102mm. Internal height to take bobbin length 77 mm. Pair of pole pieces, each 65x30x25 mm with on end shaped to part of a cone for maximum flux density. Hole drilled through total length along cone axis to take a light beam. Pole pieces will accept supertrods & shading ring (provided with accessories) & may be clamped on any separation on U core, or in contact as a non laminated I – core. Cast aluminium alloy stand consisting of a heavy base on four rubber feet with removable clamping arms. Maximum dimensions of base 190x200x115 mm. Channel 35 mm wide & 3 mm deep to take transformer core, extends across full width. Integral support for arms, to rear, is below the level of the pole pieces. Arms pivot on steel spindle with adjustment of knobs to rear bringing hard rubber pads at front end of arms to bear on transformer core. Synthetic hammer finish except of clean metal in channel & 4 mm hole to take on earthing plug lead. Complete with all the accessories
Shop
Showing 49–72 of 566 results
- Fluid Mechanics Physics Equipments
Bernouilli Tube
To demonstrate that when a liquid flows through a tube having a constriction, the speed of flow is increased and pressure decreased in the constricted section..
A horizontal tube 500 mm long 12mm O.D. is constricted near its centre and short side tubes are provided in each section for attaching glass manometer tubes 270 x 8 mm bore. If a constant head device is used to send a flow of water through the horizontal tube the variation of pressure in various sections may be determined.
SKU: n/a - Fluid Mechanics Physics Equipments
Boyle’s Law Apparatus
Two glass tubes 220mm long x 8mm bore one closed at the top and other open. Lower ends of two glass tubes are joined by 1 meter of pressure tubing. Both tubes mounted on sliding brackets lockable in any position on metal support rods. Polished wooden stand with graduated scale 0-100 cms, with mms in centre and figured every cm on either side. Supplied without mercury.
SKU: n/a - Fluid Mechanics Physics Equipments
Boyles Law Apparatus Demo
This apparatus is designed to demonstrate to students that volume of air enclosed in the column is clearly visible to students. A wide bore glass tube is mounted vertically in front of a scale graduated 0-60 cm.
Zero corresponds to the inside of the closed top end of the tube. Air is confined in the tube by a coloured oil contained in a metal container fitted with a Bourden type gauge. A tap is fitted to the side of the metal container, for the air inlet tube from the pump. As the pressure in the oil container is increased, oil is forced into the glass tube and volume of contained air and its actual total pressure are directly indicated. The tube is of extra strong glass having very large safety overload margin. As a further precaution, a safety plastic screen is secured over the front. Overall ht. 690 mm approx. Supplied complete with oil.
SKU: n/a - Chemistry Lab

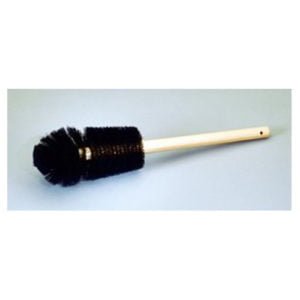

BRUSHES TEST TUBE (Cotton Yarn Tip)
Bristle with cotton yarn tip, on galvanized steel wire handle..
BristleTapered Head : 24 – 13 mm.
For Tubes Dia. : 12 -16 mm.Tapered Head : 35 – 25 mm.
For Tubes Dia. : 16 -25 mm.Nylon
Tapered Head : 24 -13 mm.
For Tubes Dia. : 12 -16 mm.Tapered Head : 35 – 25 mm.
For Tubes Dia. : 16 -25 mm.SKU: n/a - Mechanics Physics Labware
Bucket and Cylinder
Apparatus used for demonstrating Archimedes principle, there is a brass bucket and a brass cylinder. The bucket has a suspension loop at the top and a hook at the bottom. The cylinder has suspension hook at one end.
The bucket has a suspension loop at the top and a hook at the bottom. The cylinder has suspension hook at one end.SKU: n/a
